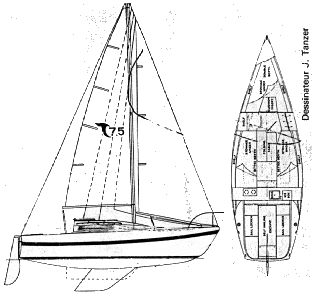

| Tanzer 7.5 (specs de/from 1987) | ||
|---|---|---|
| Dimensions: | ||
| Dessinateur | J. Tanzer. | Designer |
| Longueur hors tout | 24' 7" | Length Over All |
| Longueur a la flottaison | 21' 10" | Lenght Water Line |
| Largeur (maître bau) | 8' 0" | Beam |
| Tirant d'eau quille fine | 4'0" | Deep Keel Water Draft |
| Tirant d'eau quille longue | 2' 8" | Shoal Keel Draft |
| Déplacement quille fine | 3800 lbs | Deep Keel Displacement |
| Déplacement quille longue | 4150 lbs | Shoal Keel Displacement |
| Lest quille fine | 1600 lbs | Deep Keel Weight |
| Lest quille longue | 1950 lbs | Shoal Keel Weight |
| Tirant d'air | 32' 0" | Mast Height |
| Surface de voiles/Sail Area: | ||
| Grande Voile | 110 sq ft | Main Sail |
| Foc a louvoiement libre | 115 pi ca | Self Tacking Jib |
| Lapper | 155 pi ca | Lapper |
| Génois no 1 | 220 sq ft | Number 1 Genoa |
| Génois no 2 | 185 pi ca | Number 2 Genoa |
| Spinnaker | 450 sq ft | Spinnaker |
| I | 28.88' | I |
| J | 10.08' | J |
| P | 24.12' | P |
| E | 8.33' | E |
